KEEP
BUCKING
GOING.

Equipped with the industry’s most powerful motor, the Twister B4 is capable of delivering consistent, safe results, without the need for downtime.

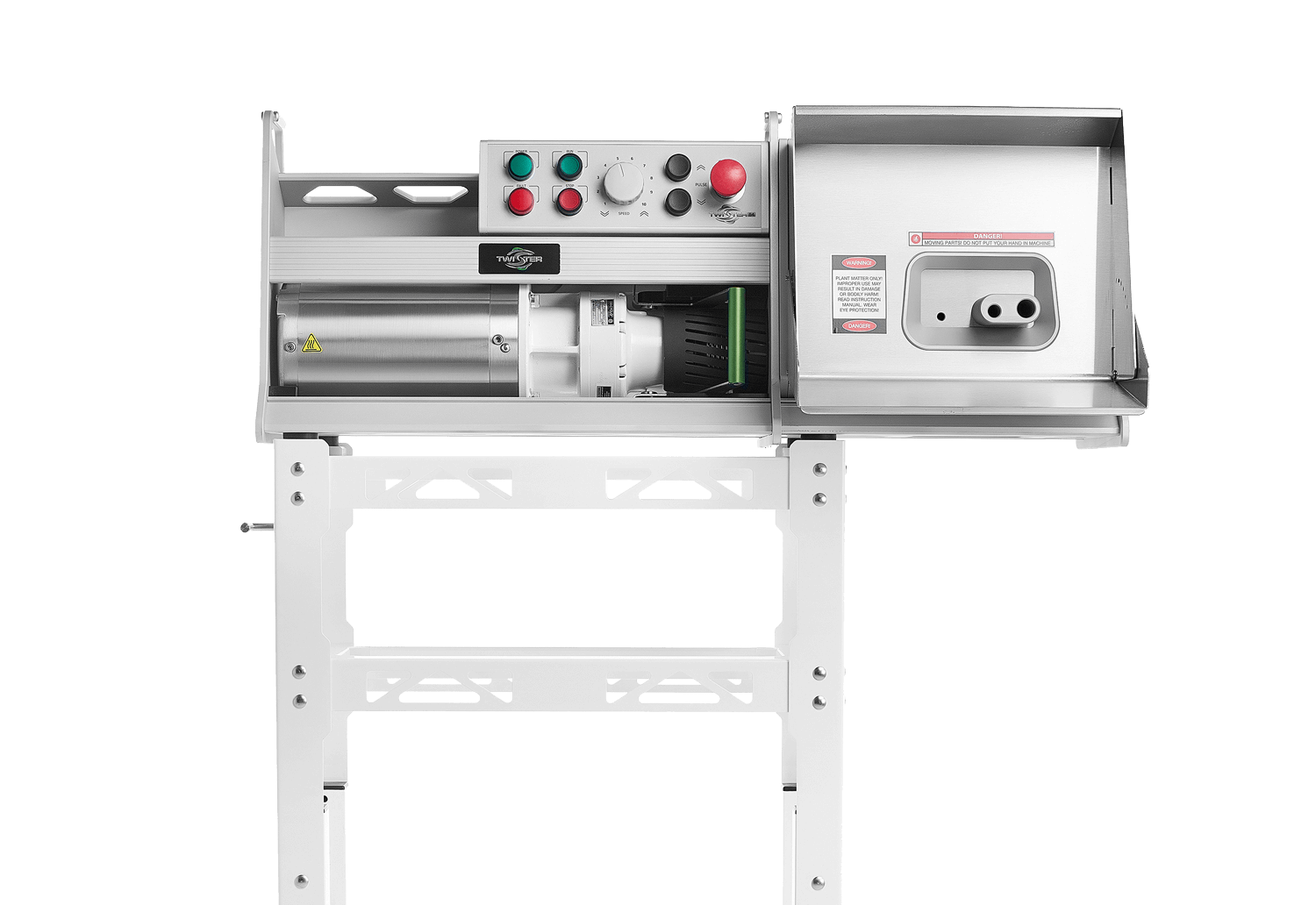

MEET THE

TWISTER
B4 BUCKER

Bucking cannabis on a large scale sucks. But it doesn’t have to. The Twister B4 ‘Bucker’ raises the bar on single piece flow by adding advanced, patent-pending cannabis bucking technology to your process flow, replacing the work that crews of 5-7 used to do by hand. Process up to 150+ lbs/hr (fully hydrated) with one unit!

Designed For Your Facility
Quality Assurance
Industry Best Performance
Product Video
Product Specs
Downloads

I

Designed for Your Facility

The B4 ‘Bucker’ was engineered to meet the needs of everyone that contributes to a successful harvest at your facility. Click the [+] to the right to sort and prioritize the key features to match common roles within your facility.

Features:

  • 150+ lbs/hr throughput (speeds of up to 30 ft/sec)
  • Quick and easy changeouts with removable cartridges
  • Patent-pending “Active Gearing” drivetrain reduces jams and downtime
  • Washdown Rated (Watertight) / IP69K and IP66K. Pressure washable
  • SafeFeed™ adaptor on the entry holes prevents injury
  • Emergency stop. Clear and within reach.
  • Easy to use. Ergonomically designed. Easy to load and operate.
  • Easy to clean. Breaks down in less than 2 minutes. Easy access to components.
  • Minimal training required. Manuals, videos, and tips available on the website.
  • Buck dry or fully hydrated.

Features:

  • Enjoy the ability to slide the B4 into your existing GMP facility. No extra work required.
  • CE Certified. https://cemarking.net/what-is-ce-marking/
  • CSA Compliant. https://www.csagroup.org/service/certification/
  • UL Compliant. https://ulstandards.ul.com/
  • The B4 uses tension-adjustable neoprene rubber rollers
  • Front and exit shrouds. Adjustable front shroud allows you to customize the height to match your outputs. Exit shroud allows stems to slide off into receptacles.
  • Emergency stop. Easy to find, easy to use.
  • 304 Stainless throughout with anodized aluminum. The quality Twister is known for.
  • Easy to clean. Breaks down in less than 2 minutes. Easy access to components.

Features:

  • Ergonomically designed. Flexible enough to run a bench, a stand, or a table.
  • Easy to use and operate. Complexity has been removed so it’s simple in, simple out.
  • SafeFeed™ adaptor prevents injury. Optional/removable safety device protects fingers from the inner rollers.
  • Removable feed cartridges – Quick and easy changeouts. An industry-first. Swap out cartridges after a strain is complete and slide in a new QA approved one. Zero downtime.
  • Patent-pending gearing system reduces jams and downtime. Adjusts on-the-fly to the variability in stem sizes.
  • Adjustable speed to match your process. 10 speed setting to match your bucking process to your overall production.
  • Pulse speed controls to burst in forward and reverse. All controls are in one easy place.
  • Forward / Reverse
  • Emergency stop. Easy to find, easy to use.

Features:

  • Easy to clean. Breaks down in less than 2 minutes. Easy access to components.
  • Removable front and exit shrouds. Adjustable front shroud allows you to customize the height to match your outputs. Exit shroud allows stems to slide off into receptacles.
  • Removable feed cartridges – Quick and easy changeouts. An industry-first. Swap out cartridges after a strain is complete and slide in a new QA approved one. Zero downtime.
  • 304 Stainless throughout with anodized aluminum. The quality Twister is known for.
  • The B4 uses tension-adjustable neoprene rubber rollers
  • Washdown Rated (Watertight) / IP69K and IP66K. Pressure washable
  • No tools needed for disassembly
  • Minimal small parts

Quality Assurance Like Never Before

Twister harvesting equipment is used by over 70% of the world’s largest producers. The B4 ‘Bucker’ was designed to meet the most stringent QA programs available. What makes the B4 really different? Plain and simple – Swappable Cartridges. We feel this tech is a game changer for commercial cannabis and QA departments. Finished with a specific strain? Simply swap in a QA approved cartridge and you’re back up and running. Zero downtime. #gamechanger


I

Powerful Non-Stop
Performance

The B4 ‘Bucker’ is designed to deliver non-stop performance under the most demanding conditions known to commercial cannabis. An industry first, the B4 ‘Bucker’ uses an “Active Gearing” system that allows the B4 to process stems up to 3/4” in diameter at speed rates of 150+ lbs/hr–no jams!


I

PRODUCT VIDEOS

PRODUCT SPECS

TWISTER B4 BUCKER

Input Voltage 120V, 60 Hz Single Phase
Current Draw < 2A Operating.14.8A Max
Drive Motor 1HP, IP66/IP69K Washdown
Motor RPM 1750 RPM
Roller Sets Neoprene Rubber
Weight 285lbs /130kg
Shipping Weight (w/o stand) 338lbs / 154kg
Unit Length 37.5in / 96cm
Unit Width 13in / 33cm
Unit Height 14.5in / 37cm
Circuit Breaker Required 20A, 120V
Connector (plug) NEMA 5-15P
Fused Yes, Thermally
Additional Requirements
Extension Cord 12 AWG (minimum AWG size)
7.6m / 25ft max length






TWISTER B4 BUCKER FEATURES

Feed Throughput 150 lbs/hr (Hydrated)
Feed Entry Sizes 3-hole (1/4″, 1/2″, 3/4″)
Feed Types Wet/Dry
Variable Speed Yes
Motor Pulse Yes
Reverse Operation Yes
Duty Cycle Continuous
Maintenance Interval > 1000 hours
Pull Speed 10 – 30 in/s
Pull Strength > 430 lbs
GMP Compliant* Yes
UL Compliant* Yes
CE Compliant* Yes
RoHS Compliant* Yes
Primary Material (Cartridge) 304 Stainless
  *The Twister B4 Bucker has been designed to meet UL, CE & RoHS standards. Certification is in progress.





DOWNLOADS

Cut Sheet

Key Features
